MODEL NO |

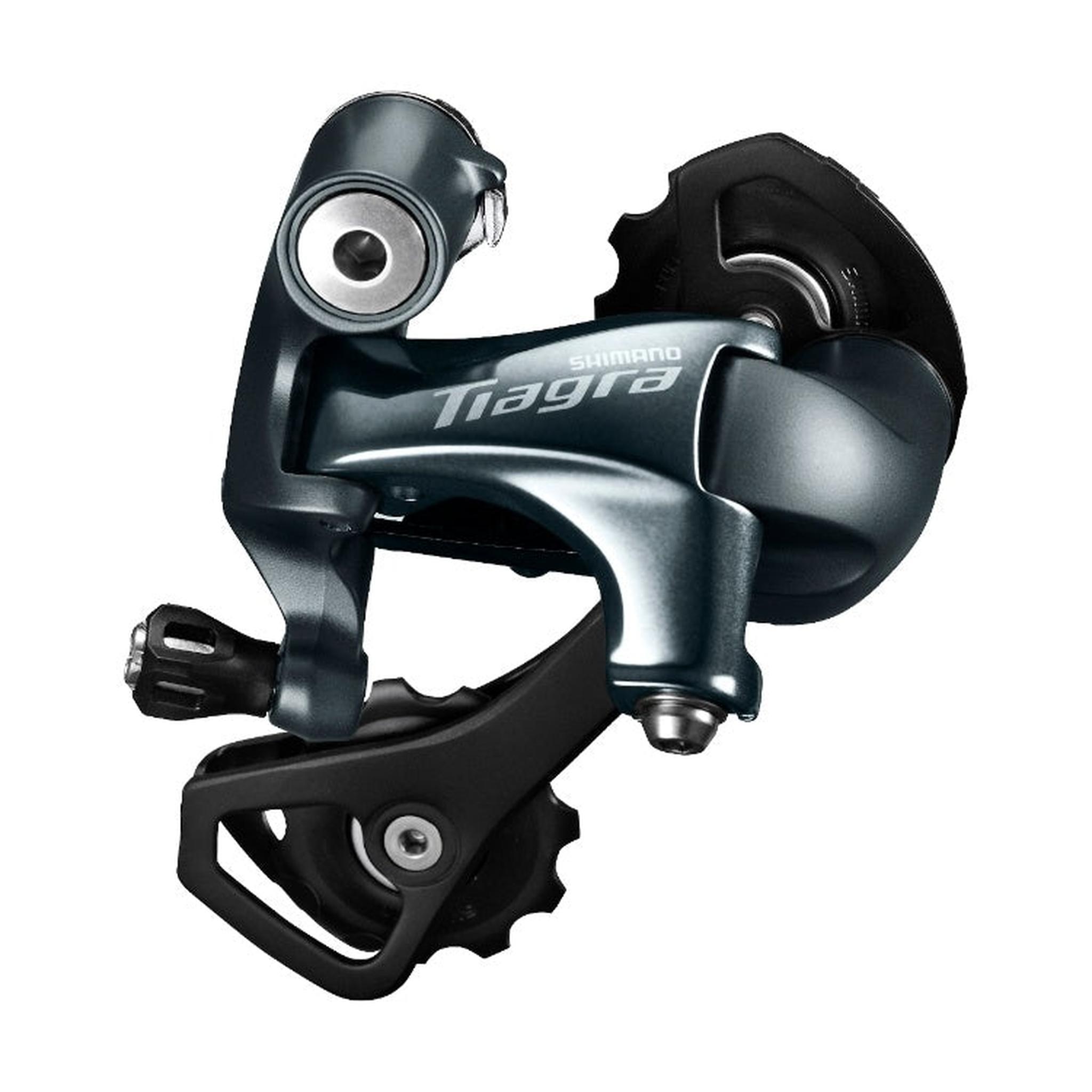

RD-4700-GS |
SERIES |
TIAGRA 4700 Series |
COLOR |
Series color |
COMPATIBLE CHAIN |
HG-X Chain |
TOTAL CAPACITY |
41T |
CABLE ADJUSTER |
β |
MOUNT_DIRECT ATTACHMENT (CONVENTIONAL) |
β |
FLUORIC COATED LINK BUSHINGS |
2 |
LOW SPROCKET_MAX. |
34T (Front double) 32T (Front triple) |
LOW SPROCKET_MIN. |
28T (Front double) 25T (Front triple) |
MAX. FRONT DIFFERENCE |
16T (Front double) 20T (Front triple) |
PULLEY_SUNKEN TYPE PULLEY BOLT |
β |
PULLEY_TEETH |
11T |
PULLEY CAGE |
GS |
TOP-NORMAL SPRING TYPE_DOUBLE SERVO |
β |
TOP SPROCKET_MAX. |
12T |
TOP SPROCKET_MIN. |
11T |
REAR SPEEDS |
10 |
