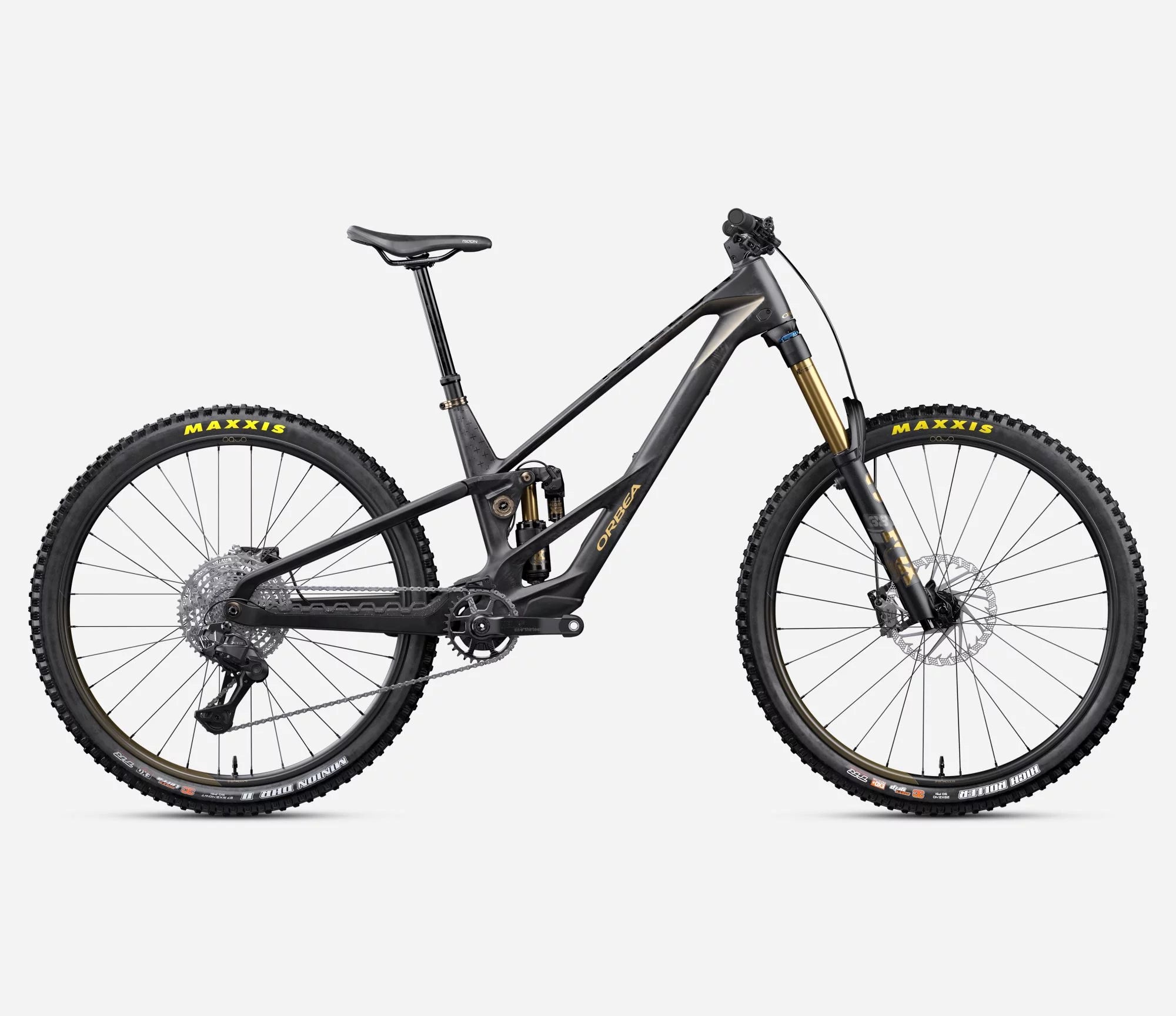

Orbea 2026 Rallon RS-Ltd 20mph

Bike Specs

Frameset

Frame:Orbea Rallon RS OMR. Mullet and 29″ wheels compatible. Concentric Boost 12×148
Shock: Fox Float X2 Live Valve Neo Factory Trunnion Evol LV custom tune 205×62.5mm
Fork: Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
Steerer tube: Alloy 1-1/2″, Black Oxidated Bearing
Link: Orbea Rallon RS 29”

Ebike

Battery: TQ HPR 290Wh
RANGE EXTENDER: N/A
Motor: TQ-HPR40
CHARGER: TQ Charger 4A
Remote: Orbea System Controller with eDropper Remote

Drivetrain

Crank: e*thirteen Helix Race alloy 32T
Shifters: Shimano XTR M9250
Cassette: Shimano CS-M9200 10-51t 12-Speed
Rear derailleur: Shimano XTR M9260 12s
Chain: Shimano CN-9100
Chainguide: Orbea eBike chainguide

Cockpit

Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem: OC Mountain Control MC11 Alu SL, 0º
Computer Mount: OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes: Shimano XTR 9220 Hydraulic Disc
Brakes Configuration: N/A

Wheels

Wheels: Oquo Mountain Control MC32LTD
Tyres: Maxxis High Roller III 2.40″ 60 TPI 3CG/EXO+/TR MaxxGripp
Tyres: Maxxis Minion 2.40″ 120 TPI 3CT/DD/TR MaxxTerra
Front Wheel Axle: N/A

Components

Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
Saddle: Fizik Terra Ridon X1 145mm

Accessories

Tools: MT-20 FLP Multitool 2/3/4/5mm hex
