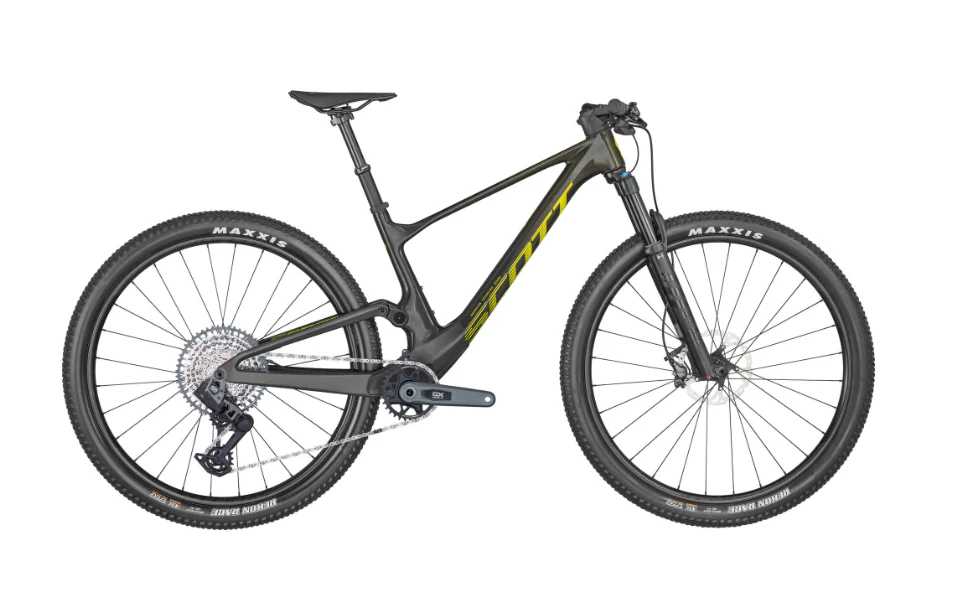

SPECIFICATIONS
Frame: Spark RC Carbon HMF, Integrated Suspension Technology
Flex Pivot / Adjustable head angle, Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork: FOX 34 SC Float Performance Air Grip
3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer
Reb. Adj. / Lockout / 120mm travel
Rear Shock: FOX NUDE 5 EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
DPS / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
Remote System: SCOTT TwinLoc 2 Technology, 3 Suspension modes
Rear Derailleur: SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
Shifters: SRAM GX Eagle AXS Rocker Controller
Crankset: SRAM GX Eagle Transmission, DUB / 55mm CL / 32T
BB-Set: SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain: SRAM CN GX Eagle Transmission
Cassette: SRAM GX Eagle XS 1275 Transmission 10-52
Brakes: Shimano XT M8100 Disc
Rotor: Shimano SM-RT76 / 6 Bolt / 180/F and 160/R
Handlebar: Syncros Fraser iC SL XC Carbon
-12° rise / back sweep 8° / 740mm
Syncros Performance XC lock-on grips
Seatpost: FOX Transfer SL Performance Dropper Post
31.6mm / S size 75mm / M, L & XL size 100mm
Seat: Syncros Belcarra Regular 1.5, Titanium rails
Headset: Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Wheelset: Syncros Silverton 2.0-30 6 Bolt
F: 15x110mm / R: 12x148mm
30mm Tubeless ready rim / 28H / XD Driver
Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
Front Tire: Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO
Rear Tire: Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO
Extras: SRAM AXS Powerpack
Accessories: Transport AxleSPECIFICATIONS
Approx weight in KG: 11.6 (Tubeless setup)
Approx weight in LBS: 25.57 (Tubeless setup)
Max. System Weight: 128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage
