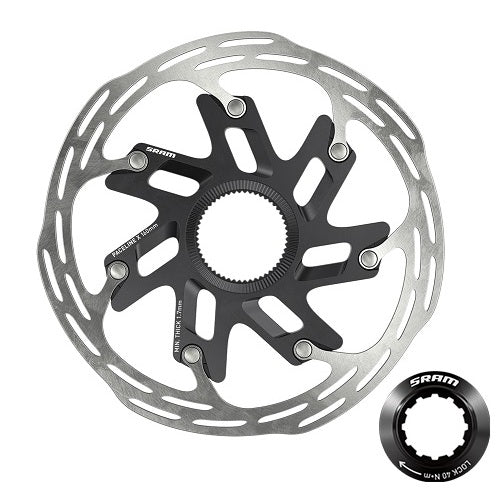

SRAM Paceline X 160mm 2-Piece CenterLock Rotor
The SRAM Paceline X 160mm 2-Piece CenterLock Rotor is a lightweight, road-focused disc brake rotor featuring a steel braking track and aluminium centre carrier. SRAM designed the Paceline X to provide quiet, smooth braking while reducing weight.
•
Key Features
-
160mm diameter
-
2-piece construction
-
CenterLock hub interface
- Aluminium centre carrier
- Steel braking track
- Rounded outer edges
- Designed primarily for road cycling
- Paceline brake track for quiet braking
- Internal-spline lockring included
Specifications
| Specification |
Details |
| Product |
SRAM Paceline X Rotor |
| Diameter |
160mm |
| Rotor Type |
2-Piece |
| Hub Interface |
CenterLock |
| Construction |
Aluminium carrier + steel brake track |
| Thickness |
1.85mm |
| Finish |
Black |
| Edge Profile |
Rounded |
| Lockring |
Internal-tooled SRAM lockring included |
| Intended Use |
Road |
| SRAM Part Number |
00.5018.235.003 |
| Model |
RT-PLN-X-A1 |
SRAM's technical documentation specifies the 160mm Paceline X rotor at 1.85mm thickness, with a 115mm carrier diameter. The lockring should be tightened to 40 N·m.
Benefits
-
Quiet braking: The Paceline braking surface is designed to minimise brake noise.
-
Low weight: The aluminium carrier reduces weight compared with a one-piece steel rotor.
-
Smooth braking: Provides consistent braking performance for road applications.
-
Rounded edges: Make wheel installation easier and meet modern UCI requirements.
-
CenterLock installation: Provides a clean, straightforward rotor mounting system.
-
Complete package: The required SRAM internal-tooled lockring is included.
Best Suited For
Ideal for road bikes, endurance bikes, gravel bikes and other bicycles using compatible SRAM hydraulic disc brakes and CenterLock hubs.
Important: This is a CenterLock rotor, so it cannot be mounted directly to a standard 6-bolt hub. Also check that your frame, fork and brake caliper are approved for a 160mm rotor.
