Product

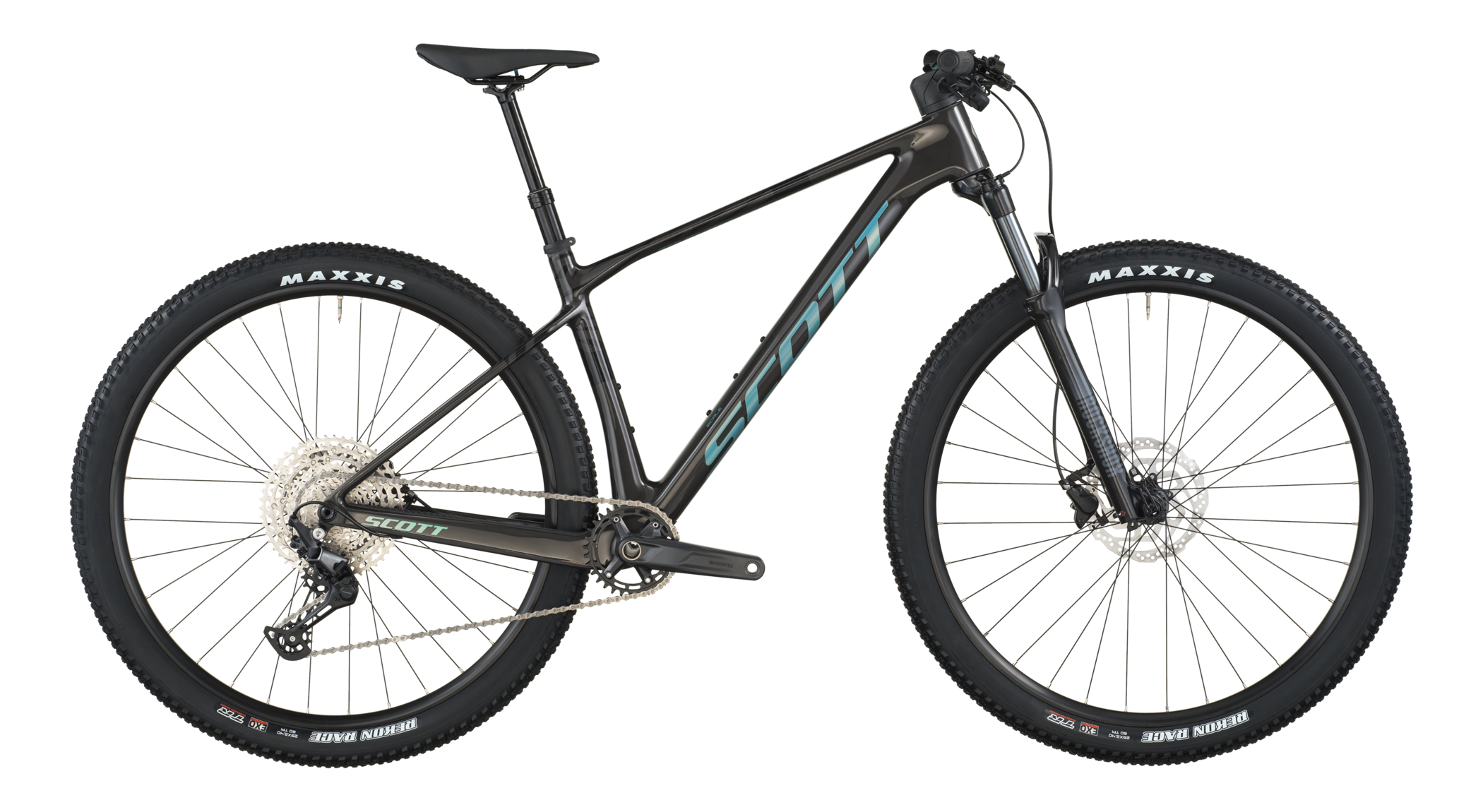

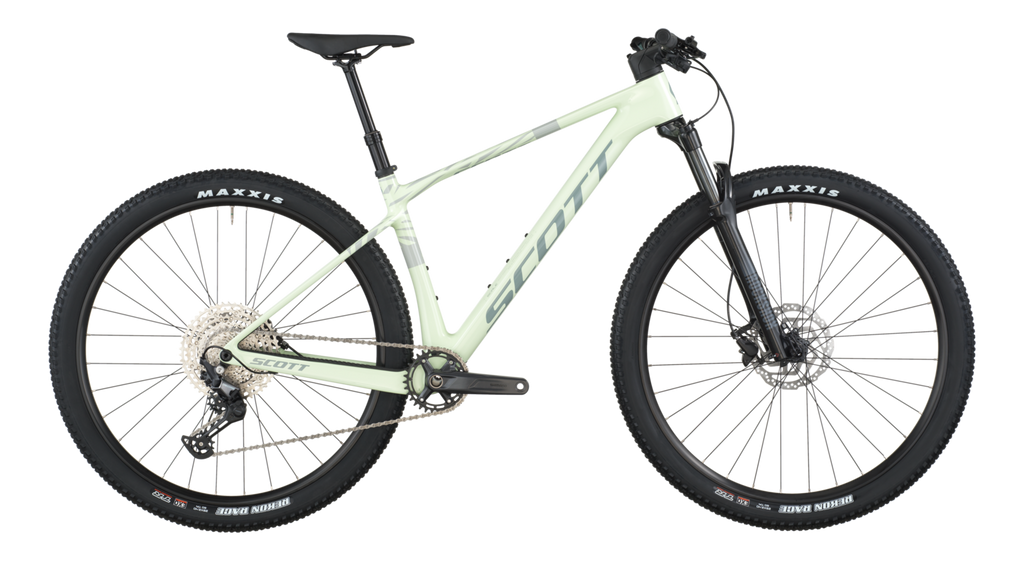

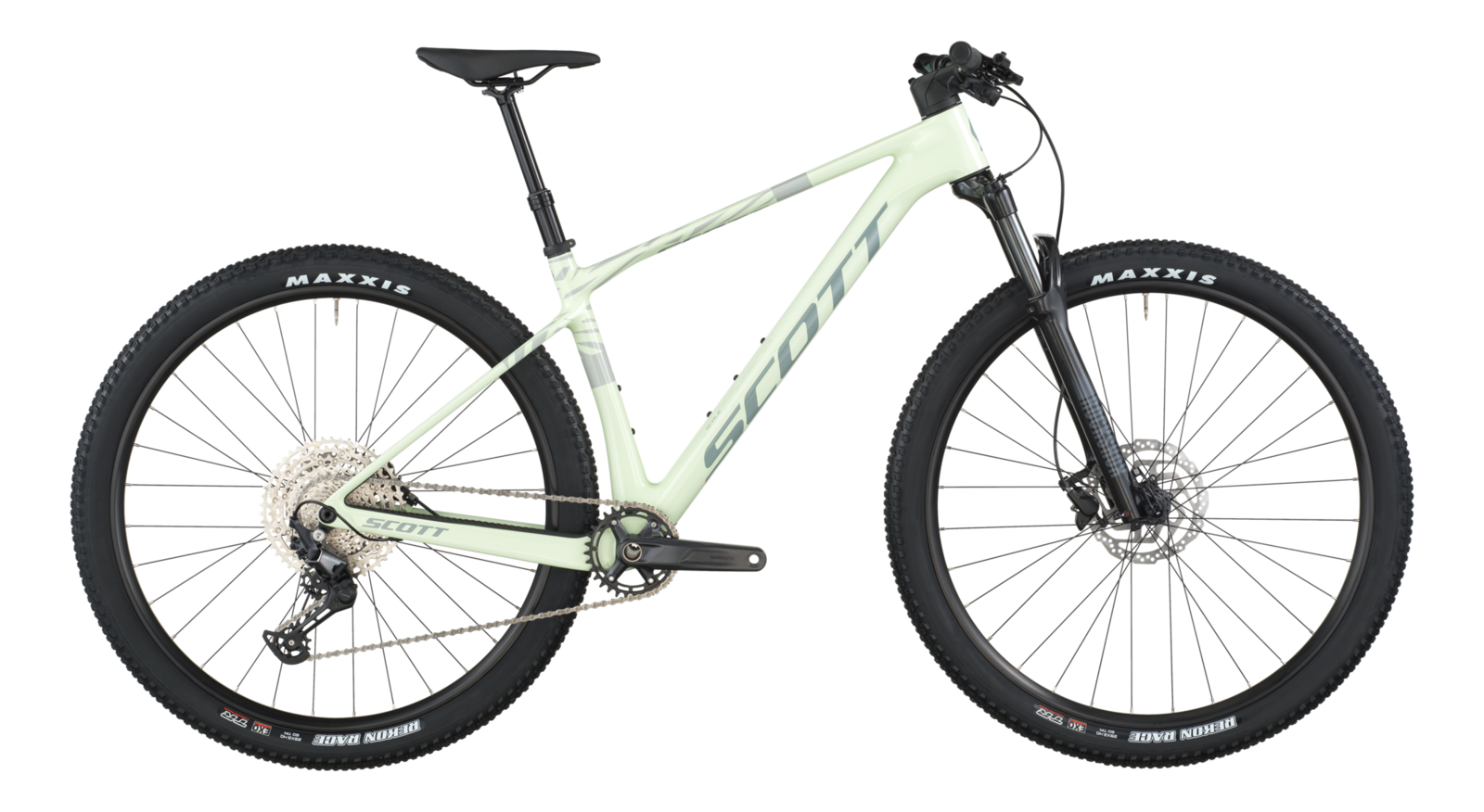

Scott Scale 920 Bike
Frame Material Details
HMF monocoque carbon, molded chainstay protection
Fork
RockShox Judy Silver TK, Solo Air spring, TurnKey damper, 2-mode compression adjust via Scott RideLoc remote lever, rebound adjust, 30mm stanchions, 51mm offset
Head Tube Diameter
Straight, 56mm
Headset
Syncros/ACROS angle-adjust, internal cable routing, +/- 0.6° head tube angle adjustment; ZS56/28.6 upper, ZS56/40 MTB lower
Handlebar
Syncros, 6061 alloy, 740mm width, flat, 9° backsweep, 31.8mm clamp diameter
Stem
Syncros DC 3.0, 6061 alloy, Cable Integration System (CIS) internal routing, 0° rise, 31.8mm bar clamp
Length: 50mm (SM), 60mm (MD), 70mm (LG), 80mm (XL)
Grips
Syncros Performance XC, lock-on
Brakes
Shimano MT200, 2-piston
Rotors: Shimano RT10, CENTER LOCK, 180mm front, 160mm rear
Brake Levers
Shimano MT200
Shifters
Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS
Rear Derailleur
Shimano Deore M6100, 12-speed, SGS cage, SHADOW RD+
Cranks
Shimano MT512 Alloy
Length: 170mm (SM/MD), 175mm (LG/XL)
Chainrings
Shimano MT512, 32 tooth
Bottom Bracket
Shimano MT500, PF92 press-fit
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Alexrims X-25 Alloy, 25mm inner width, 32 hole, tubeless ready
Hubs
Formula, CL-811 15mm x 110mm (Boost) front, CL-548M 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes
Stainless steel, 15g/1.8mm
Tires
Maxxis Rekon Race, EXO casing, TR, 29" x 2.4"
Saddle
Syncros Belcarra Regular 2.5
Seatpost
Syncros Duncan dropper, remote lever integrated with Scott RideLoc lever
Drop: 100mm (SM), 130mm (MD), 150mm (LG/XL)
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Bottle Cage Mounts
Two inside front triangle
Colors
White, Carbon Black, Ambrosia Green
