Shimano Disc Rotor Sm-Rt56 180Mm 6 Bolt Resin

The Shimano SM-RT56 180mm 6-Bolt Disc Rotor (Resin only) is a mid-level MTB rotor designed for stronger braking power, better heat management, and reliable performance on trail and XC bikes.

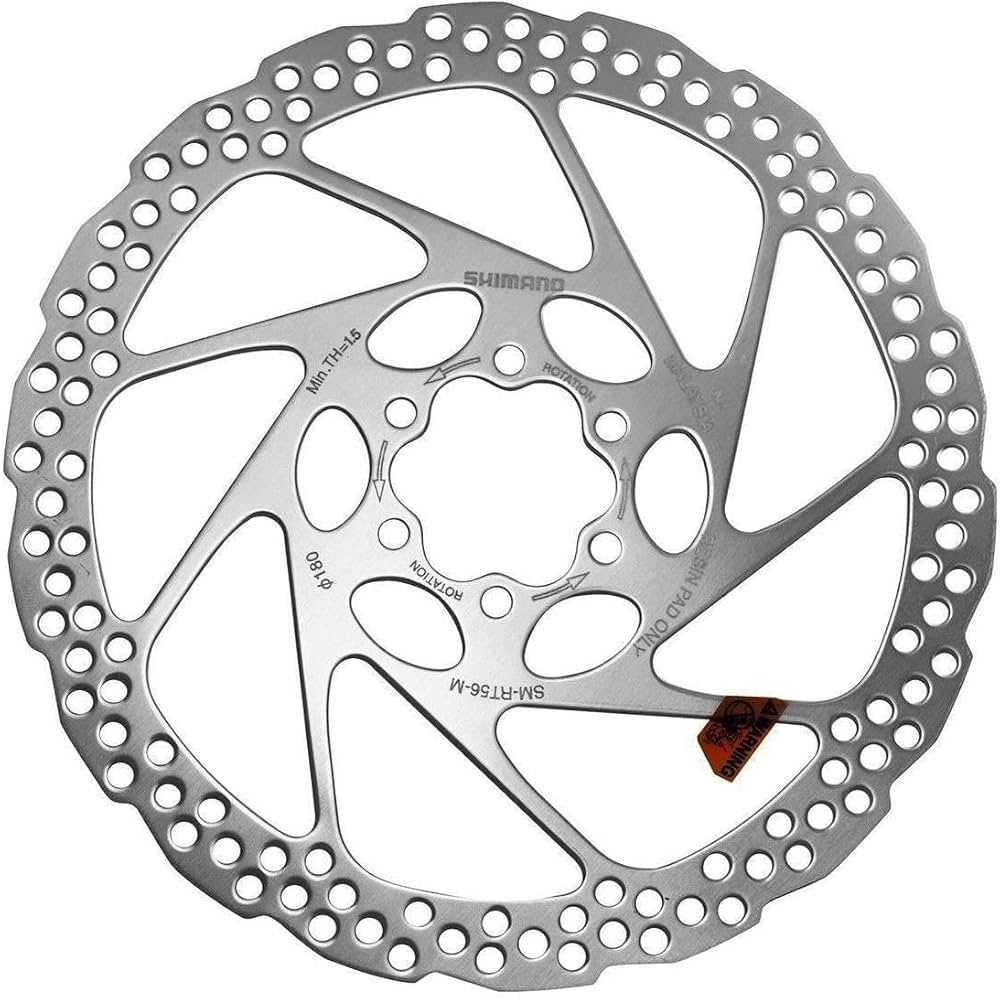

Shimano SM-RT56 180mm 6-Bolt Resin Disc Rotor

What it is

This is:

• a 180mm disc brake rotor
• uses the 6-bolt international standard mount
• part of Shimano’s Deore-level rotor range (SM-RT56)
• designed for resin brake pads only

Key features

Resin pad only design

• optimized for quiet braking
• smooth modulation
• reduced vibration and noise

6-bolt mounting system

• secured with 6 rotor bolts
• very common MTB standard
• easy to install and service

Stainless steel construction

• durable braking surface
• good heat resistance for trail riding
• consistent braking in wet/dry conditions

180mm size advantage

Compared to 160mm rotors, 180mm gives:

• more braking power
• better heat dissipation
• improved control on long descents

(Important: it increases braking torque due to larger radius.)

$\tau = F \times r$

Where:

• τ (tau) = braking torque
• F = braking force from caliper
• r = rotor radius (180mm > 160mm → more torque)

Ride feel

• noticeably stronger braking than 160mm rotors
• better for steep or long descents
• smoother and more controlled braking
• less fade under repeated braking

Best suited for

• XC and trail MTB riding
• heavier riders or loaded bikes
• front brake upgrades (very common use)
• e-bike or aggressive recreational riding (light duty)

Pros

• strong braking power
• good heat management vs smaller rotors
• quiet resin-pad performance
• reliable Shimano build quality
• widely compatible 6-bolt system

Trade-offs

• must use resin pads only (no metal pads)
• heavier than entry-level RT54 rotor
• not as heat-resistant as Ice-Tech or floating rotors
• may require frame/fork clearance adapter

Bottom line

The Shimano SM-RT56 180mm 6-bolt rotor is a reliable mid-range brake rotor that prioritizes stronger braking power and better heat control, making it a solid upgrade for trail riders or anyone needing more stopping confidence than a 160mm setup.
