Orbea 2026 Occam LT H30

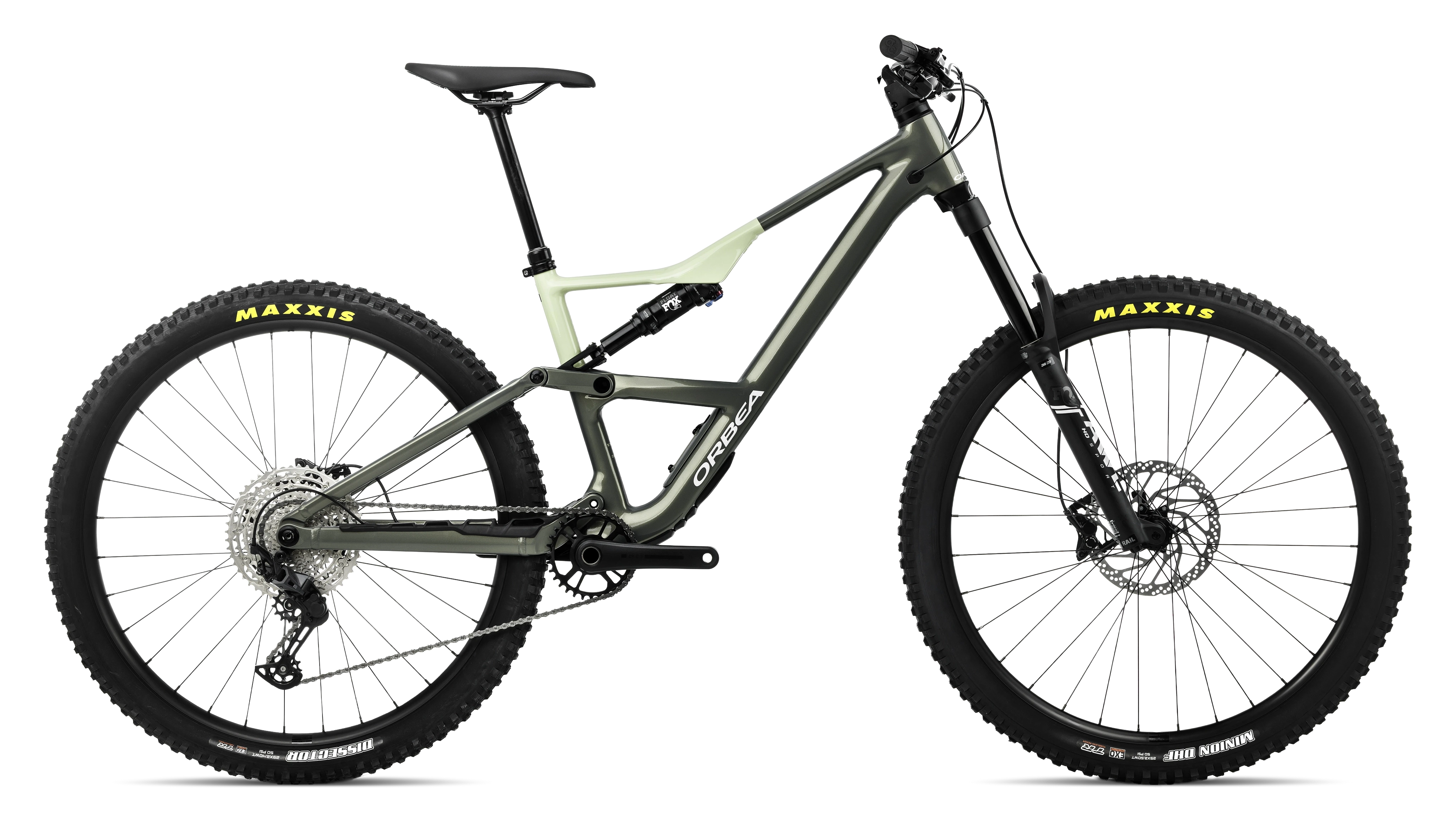

The 2026 Orbea Occam LT H30 is a long-travel aluminium trail/enduro mountain bike built around a 150mm rear / 160mm front suspension platform and 29-inch wheels. It uses Orbea's Occam Hydro aluminium frame, Shimano Deore 12-speed drivetrain and Shimano MT420 four-piston hydraulic brakes.

Full Specifications

Component Specification

Model : Orbea Occam LT H30 2026
Frame : Orbea Occam Hydro aluminium
Frame Material  Hydroformed aluminium
Wheel Size : 29"
Rear Travel : 150mm
Front Travel : 160mm
Rear Axle : Boost 12×148mm
Front Axle : 15×110mm Boost
Frame Geometry : Pure Trail geometry
Cable Routing : External on standard build; internal routing option available
Fork : FOX 36 Float AWL HD Sport
Fork Travel : 160mm
Rear Shock : FOX Float Performance 2-Position EVOL Custom Tune
Shock Size : 210×55mm
Headset : FSA 1-1/2" Integrated Aluminium Cup
Rear Derailleur : Shimano Deore M6100 SGS Shadow Plus
Shifter : Shimano Deore M6100 I-Spec EV
Cassette : Shimano CS-M6100 10–51T, 12-speed
Chain : Shimano M6100
Crankset : Forged alloy, 32T
Bottom Bracket : Shimano-compatible press-fit system
Brakes : Shimano MT420 Hydraulic Disc
Brake : Type 4-piston hydraulic disc
Handlebar : OC Mountain Control MC30, Rise 20
Handlebar Width : 800mm
Stem : OC Mountain Control MC20, 0°
Grips : OC Lock-On
Wheels : Alloy, Tubeless, 29", 32H
Front Tyre :
Rear Tyre :
Saddle : Selle Royal 2058 DRN
Seatpost : OC Mountain Control MC22, 31.6mm, dropper
