KMC Chain Link 9 Speed 6.6mm
What Is It?

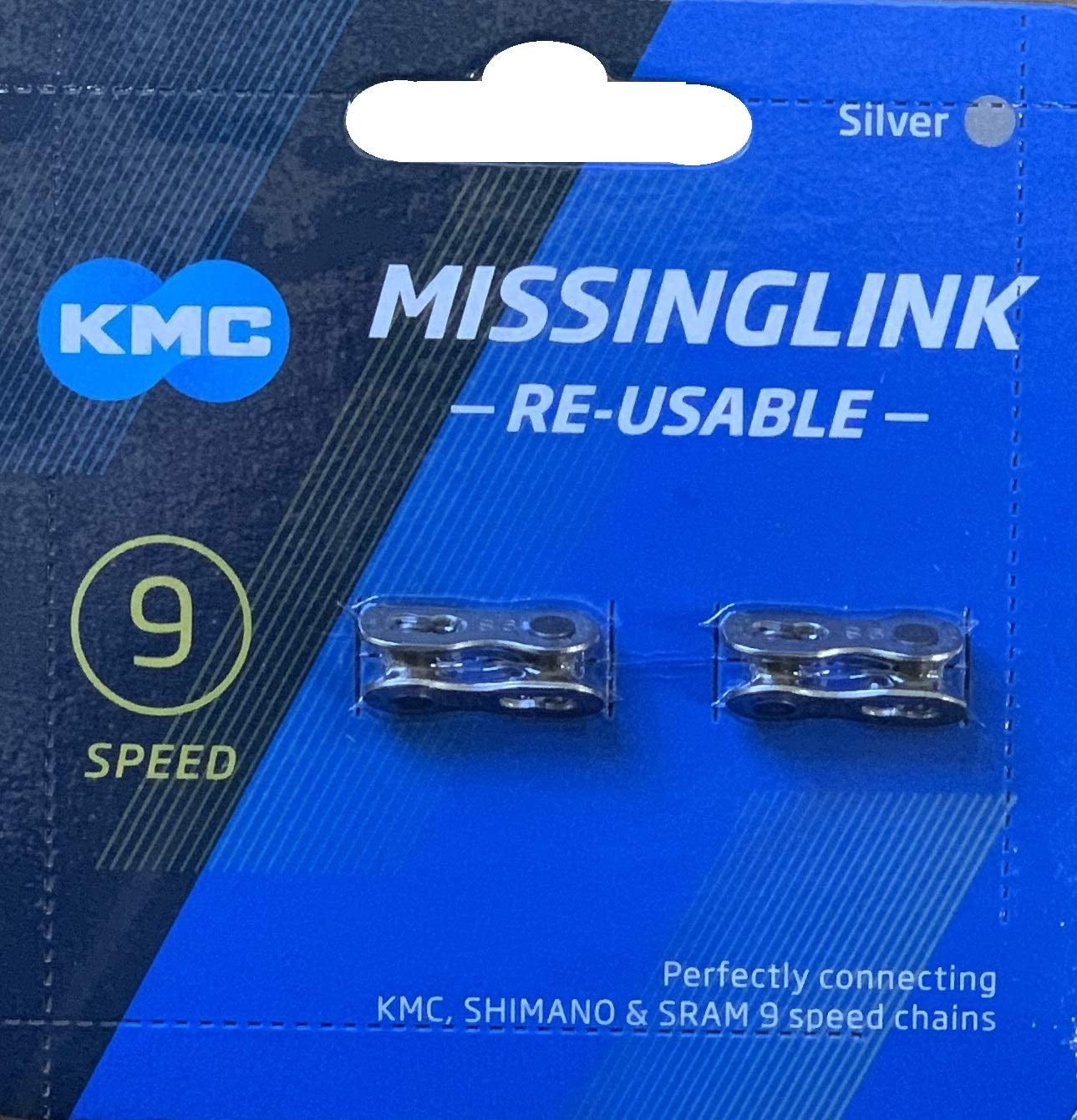

The KMC 9-Speed 6.6mm Chain Link / MissingLink is a replacement quick-release connector for joining compatible 9-speed bicycle chains. It allows the chain to be connected and disconnected without using a conventional connecting pin. KMC specifies the CL566R for KMC, Shimano and SRAM 9-speed chains.
Key Features
-
9-speed chain compatibility
- 6.6mm pin length
- Reusable MissingLink design
- Non-directional design for easy installation
- Tool-free chain connection
- Suitable for road, MTB, touring and cyclocross bikes
- Compatible with KMC, Shimano and SRAM 9-speed chains
Specifications
| Specification |
Details |
| Product |
KMC MissingLink 9-Speed |
| Speed |
9-speed |
| Pin Length |
6.6mm |
| Type |
Quick-release chain connector |
| Compatibility |
KMC / Shimano / SRAM 9-speed |
| Reusable |
Yes – CL566R |
| Colour |
Silver |
| Application |
Road / MTB / Touring / Cyclocross |
KMC's current CL566R is the reusable version. KMC also offers CL566e specifically for e9 chains, which is non-reusable, so the exact version should be checked when replacing a link.
Benefits
-
Easy installation: Connects the chain without a traditional chain pin.
-
Convenient maintenance: Allows the chain to be opened for cleaning or servicing.
-
Emergency spare: Small enough to carry on rides as a replacement link.
-
Reliable connection: Designed specifically around 9-speed chain dimensions.
-
Broad compatibility: Works with compatible KMC, Shimano and SRAM 9-speed chains.
Important: The 6.6mm specification is for 9-speed chains. Do not substitute a 7/8-speed link, which uses a wider specification. KMC recommends replacing reusable MissingLinks after repeated opening/closing rather than using them indefinitely.
