????️ What it is
This is a one-piece (Ashtabula-style) crankset designed for 20-inch bikes, commonly:
- BMX bikes
- Kids’ bikes
- Basic cruisers

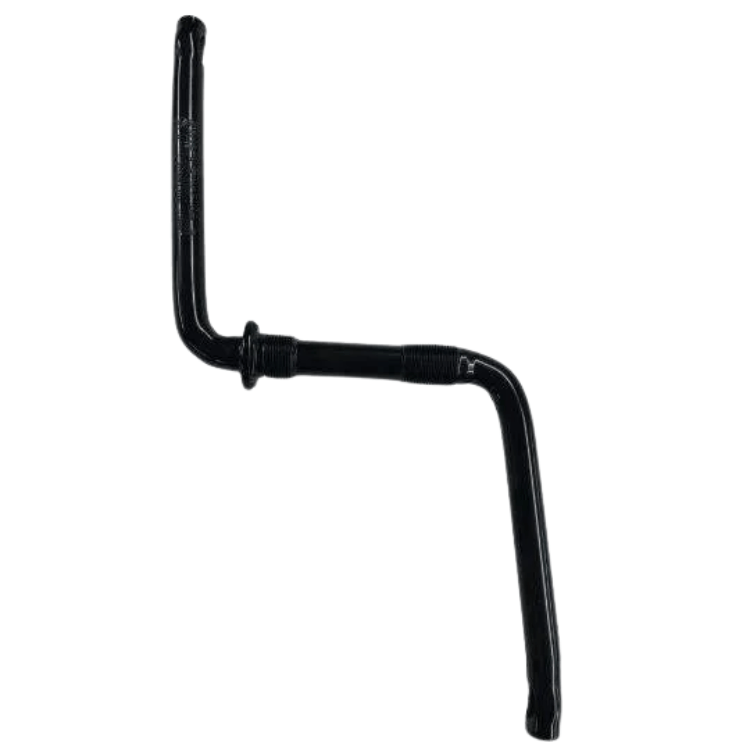

The crank, spindle, and arms are all forged as a single steel unit that rotates through a simple bottom bracket.
???? Key specs explained
???? 20” wheel compatibility
- Designed for larger kids’ bikes or BMX frames
- Typically paired with stronger, more stable frames than 16” versions
⚙️ 51.5 mm bottom bracket shell
- This is the standard “US/Ashtabula” OPC shell size
- Larger than the 43 mm version
- ❗ Must match your frame exactly—this is not interchangeable with smaller OPC systems
???? Crank length (~152 mm)
- Longer crank arms than kids’ 16” setups
- Gives:
- Better leverage
- More comfortable pedaling for taller riders
- Common on 20” BMX-style bikes
???? W/O pin (cotterless OPC design)
- This version does not use a retaining pin
- Instead, stability comes from:
- Frame design
- Press-fit bottom bracket cups
- Simpler, more modern version of OPC systems
???? Steel Ashtabula “S-shape” construction
- Single forged steel piece (very strong)
- Extremely resistant to bending or impact
- Heavier than modern multi-piece cranksets, but very durable
???? Pedal compatibility
- Uses standard 1/2” x 20 TPI pedal threads
- Common on BMX and one-piece crank systems
???? Where it fits best
Bravvos targets this crank for:
- 20” BMX bikes
- Older or entry-level cruisers
- Kids’ bikes transitioning to larger wheel sizes
- Budget repairs and replacements
⚠️ Compatibility checklist (important)
Before buying, confirm:
- ✔ Your bike uses a 51.5 mm OPC bottom bracket shell
- ✔ Your frame is designed for one-piece crank systems (not square taper or cartridge)
- ✔ You do NOT require a retaining pin system
- ✔ Chainline matches your current setup
???? Bottom line
This Bravvos 20” 51.5 mm crank is a strong, simple, no-frills drivetrain replacement for BMX and kids’ bikes. It’s built for durability and abuse rather than performance or weight savings—but it works reliably when matched correctly to the frame.
