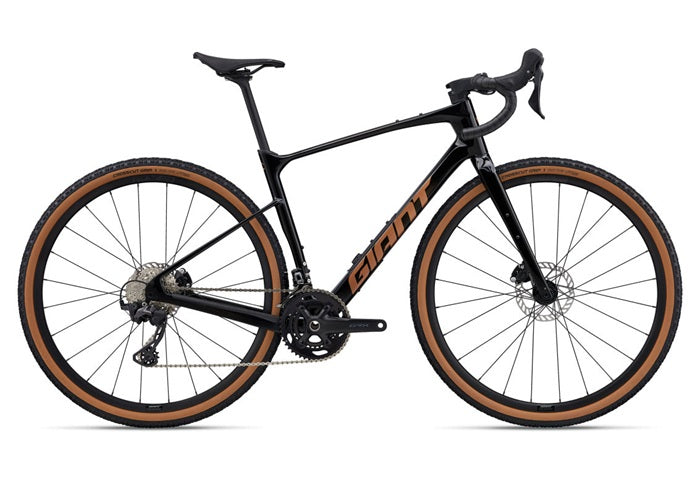

Giant 2026 Revolt Advanced 2

Sizes
XS, S, M, M/L, L, XL

Colors
Carbon

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
Stratus Lite 3.0

Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse, composite, 14mm offset

Saddle
Giant Grit

Shifters
Shimano GRX RX-610, 2x12

Front Derailleur
Shimano GRX RX-820

Rear Derailleur
Shimano GRX RX-820

Brakes
Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
Shimano GRX RX-610 hydraulic

Cassette
Shimano CS-HG710, 12-speed, 11x36

Chain
KMC X12L-1

Crankset
Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
Shimano, press fit

Rims
Giant P-X2 , alloy

Hubs
Giant alloy, 12mm thru-axle

Spokes
Sapim

Tires
Giant Crosscut Grip, 700x45c, tubeless

Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag

Max Tire Clearance
53mm
