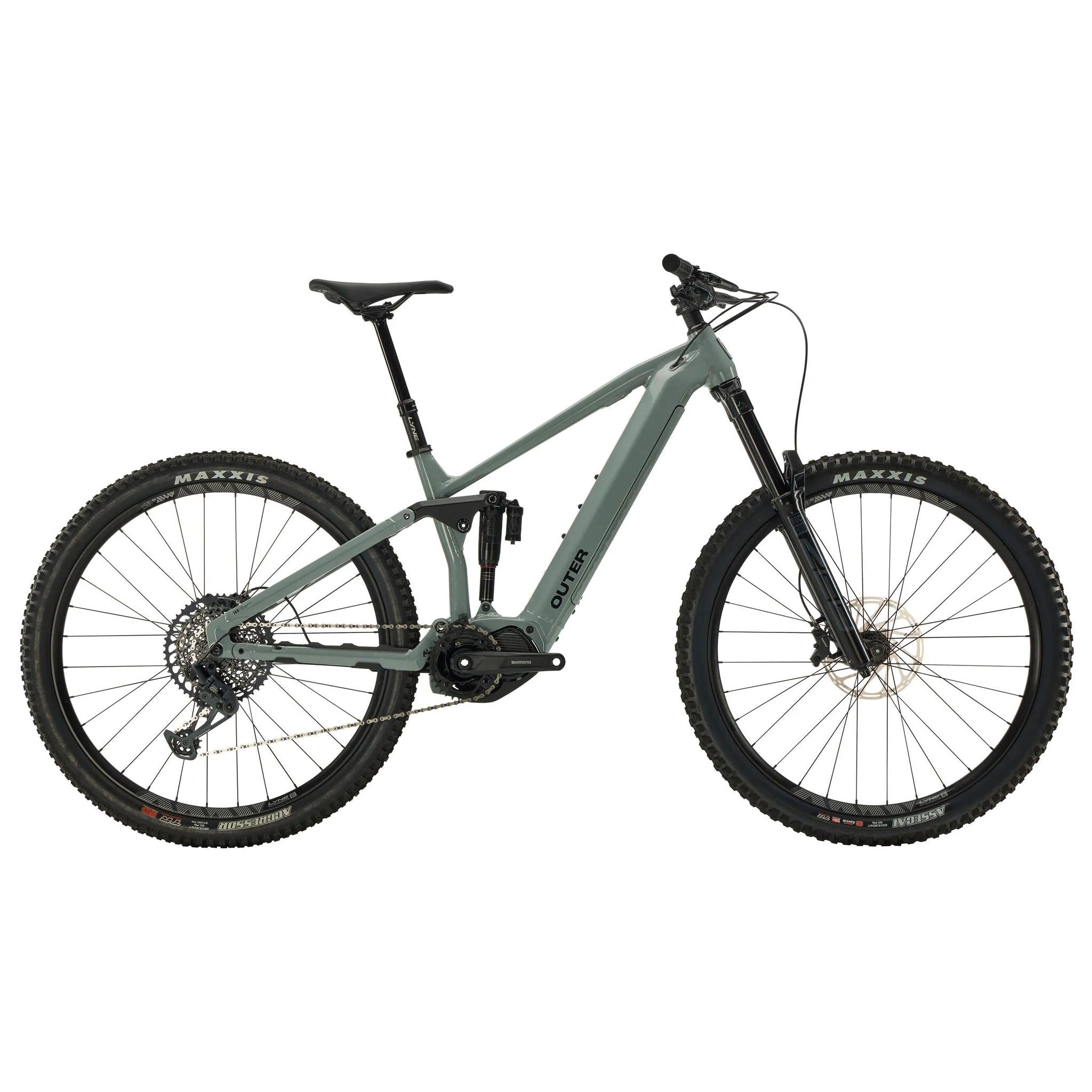

Frame Alloy 29” Boost, 160mm travel, UDH hanger, Integrated Battery |
| Wheel size |
29” front and rear |
| Fork |
Rockshox ZEB Select 160mm 44mm offset |
| Rear Shock |
Rockshox Super Deluxe Select+ 205x62.5mm |
| Rear Derailleur |
SRAM GX Eagle 12 Speed |
| Shifter |
SRAM GX Eagle 12 Speed |
| Cassette |
SRAM CS XG 1275 Eagle 10-52T |
| Chain |
SRAM GX Eagle |
| Headset |
FSA No.57 |
| Rear Tyre |
Maxxis Aggressor, 29x2.5WT, 120TPI x2, Foldable, DD/TR |
| Front Tyre |
Maxxis Assegai, 29X2.5WT, 120TPI, Foldable, 3CT MaxxTerra/EXO+/TR |
| Wheelset |
Lyne AMP HD rims, Novatec Hubs |
| Brakes |
SRAM Code R |
| Rotors |
SRAM Centerline 200mm front, 180mm rear |
| Crankset |
Shimano M600 170mm, 34T Chainring |
| Handlebars |
Lyne AMP 20mm rise, 800mm Width, Integrated cable routing |
| Stem |
Lyne AMP 35 Bar Clamp, 35mm S & M, 50mm L & XL |
| Seatpost |
Lyne Contour V2.0 Internal Dropper Post - 150mm travel |
| Saddle |
Outer 140mm |
| Grips |
Lyne Cosmic Cactus Lockon Black |
| Battery |
Shimano 630Wh integrated |
| Drive Unit |
Shimano EP8 (32 km/h) |
| Battery Charger |
Shimano EC-E8004 |
| Frame Warranty |
5 Years |
| Weight |
+/-25.2 kg (size small, please allow for some deviation) |
