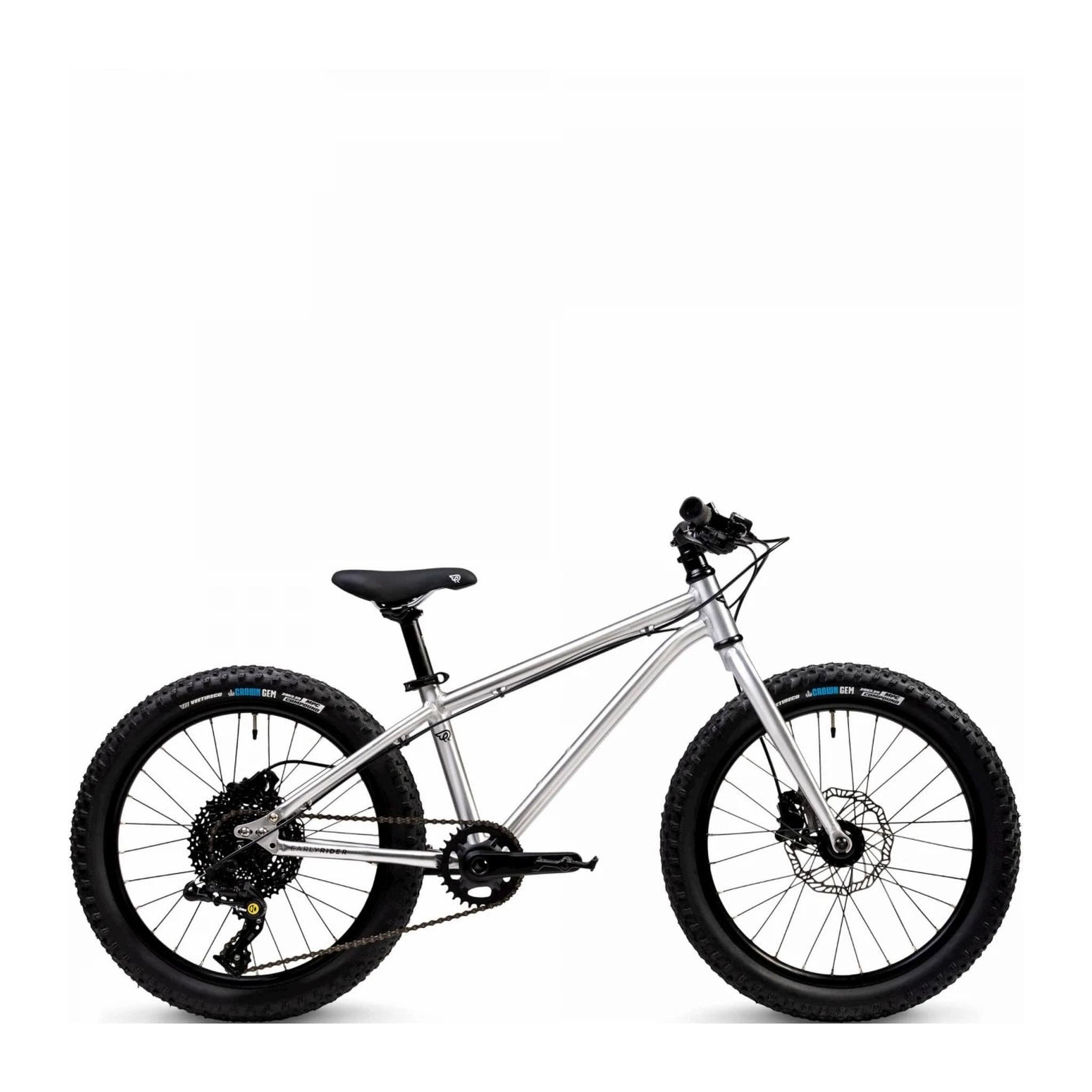

Early Rider Seeker

INSIDE LEG
54CM

FRAME
HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK
HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE
AL6061

CRANKS
SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR

PEDALS
ER CNC’D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET
SAMOX 24MM EXTERNAL CUP

RIMS
20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE

REAR HUB
FOUR-BEARING CASSETTE FREEHUB, CNC’D AL6061

FRONT HUB
CNC’D 6 BOLT DISC, AL6061, QR SKEWER

CHAIN
BOX 4 P8 CHAIN

CHAINRING
DIRECT MOUNT, NARROW WIDE 30T, STEEL

REAR CASSETTE
BOX 4 P8 11-42T

SHIFTER
BOX 4 P8 MULTI TWIN SHIFTER

WEIGHT
8.7KGS W/O PEDALS

DERAILLEUR
BOX 4 REAR P8 CLUTCH EQUIPPED MECH

BRAKES
PROMAX DSK926 HYRDAULIC DISC, 160 ROTORS

LEVERS
PROMAX BL81

FRONT TYRE
VEE CROWN GEM 20×2.25″, 27TPI WB

REAR TYRE
VEE CROWN GEM 20×2.25″, 27TPI WB

HEADSET
1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM
RITCHEY OS FORGED AL6061, 35MM REACH

BARS
560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE

GRIPS
ER LOCK ON KRATON 92MM

SEAT POST
RITCHEY, 27.2MM x 250MM AL6061

SADDLE
ER WINGED, RAILED

SEAT CLAMP
RITCHEY QR, 31.8MM
